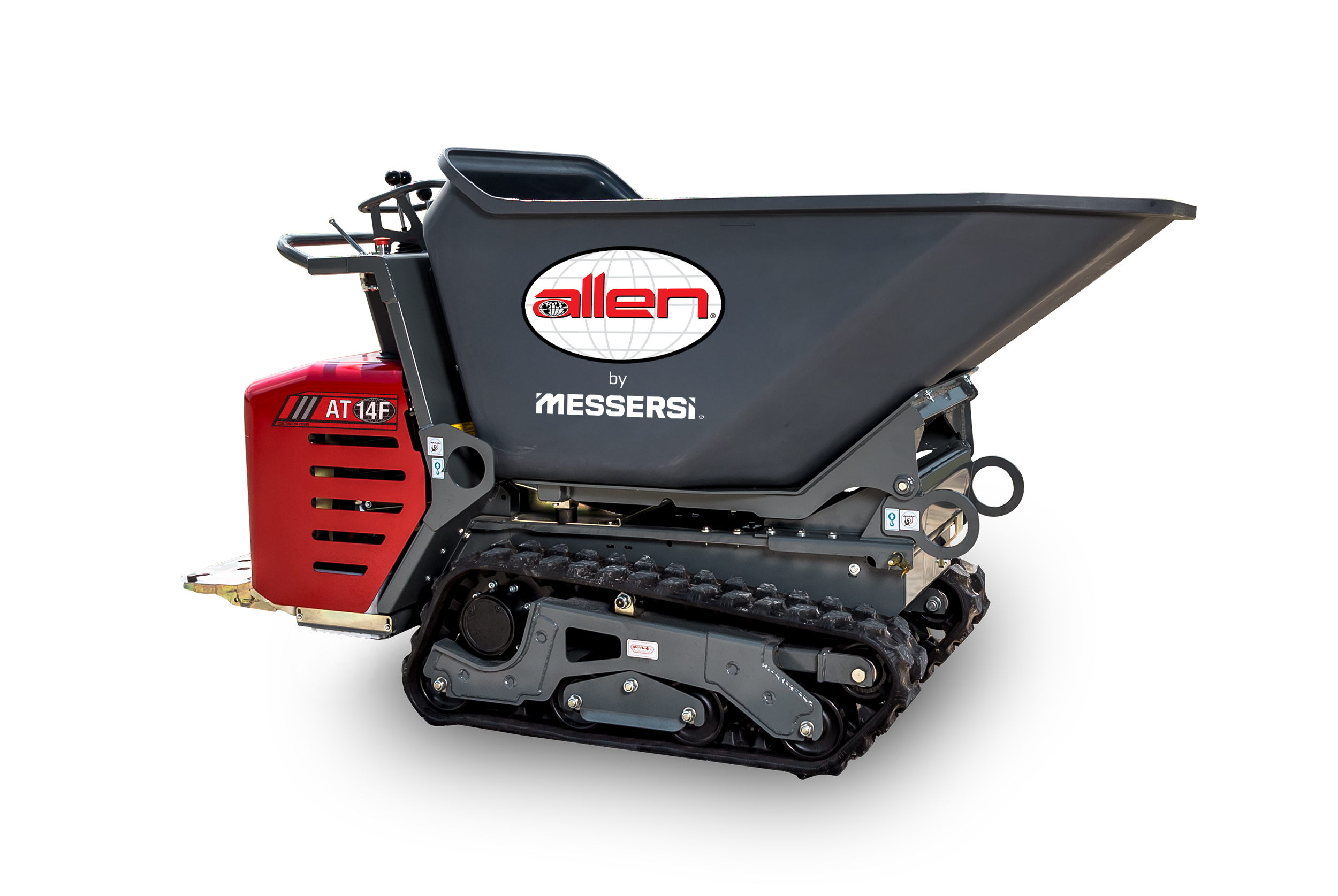

The AT14F rubber track buggy is a rugged and compact machine that will haul and dump any bulk material. This machine comes equipped with simple intuitive controls, a 20 hp engine, and a 14 cubic foot poly bucket. It is a perfect fit for concrete workers, landscapers, contractors or anyone else who needs to haul or dump material on a regular basis.

Specifications

ENGINE



HONDA GX630 / 688 cc

HORSEPOWER CLASS



20 hp / 15 kW

STARTER



Electric

FUEL TYPE



Gasoline

FUEL CAPACITY



3 gal / 11.35 L

TOP SPEED



WORK: 4 mph TRAVEL: 6 mph / WORK: 6 kph TRAVEL: 10 kph

PAYLOAD



2,100 lb / 952 kg

BUCKET CAPACITY



14 cu. ft. / 0.39 cu. m

DUMP ANGLE



90º

DUMP/RETURN SPEED EMPTY



4 seconds

PIVOT ANGLE



0º

WEIGHT



1,420 lb / 644 kg

DIMENSIONS (L X W X H)



98 x 31.5 x 52.5 in / 248.9 x 80 x 133.4 cm
