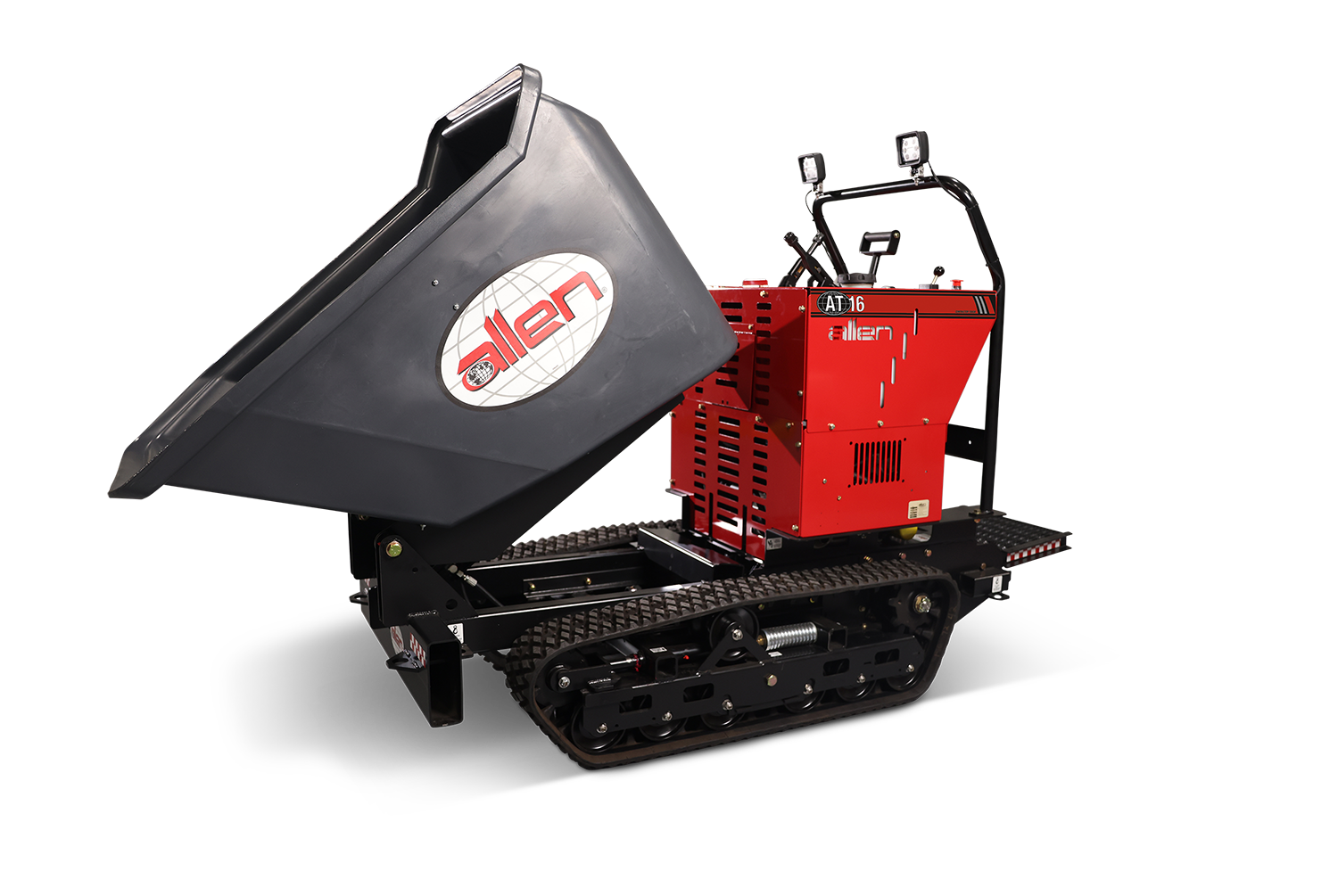

The AT16 is the largest track buggy offered by Allen Engineering. This buggy comes fully equipped with lights, single-hand drive, a two-inch tubular frame, and a robust 2,500 lb payload capacity. The AT16 rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle, the AT16 buggy can place your material exactly where you need

Specifications

ENGINE



KOHLER EZT740 / 747 cc

HORSEPOWER CLASS



25 hp / 18.6 kW

STARTER



Electric

FUEL TYPE



Gasoline

FUEL CAPACITY



6 gal / 22.7 L

TOP SPEED



WORK: 4 mph TRAVEL: 6 mph / WORK: 6 kph TRAVEL: 10 kph

PAYLOAD



2,500 lb / 1,135 kg

BUCKET CAPACITY



16 cu. ft. / 0.45 cu. m

DUMP ANGLE



90º

DUMP/RETURN SPEED EMPTY



15 seconds

PIVOT ANGLE



0º

WEIGHT



1,475 lb / 669 kg

DIMENSIONS (L X W X H)



102.5 x 35.6 x 65.25 in / 260 x 90.4 x 166 cm

it.
